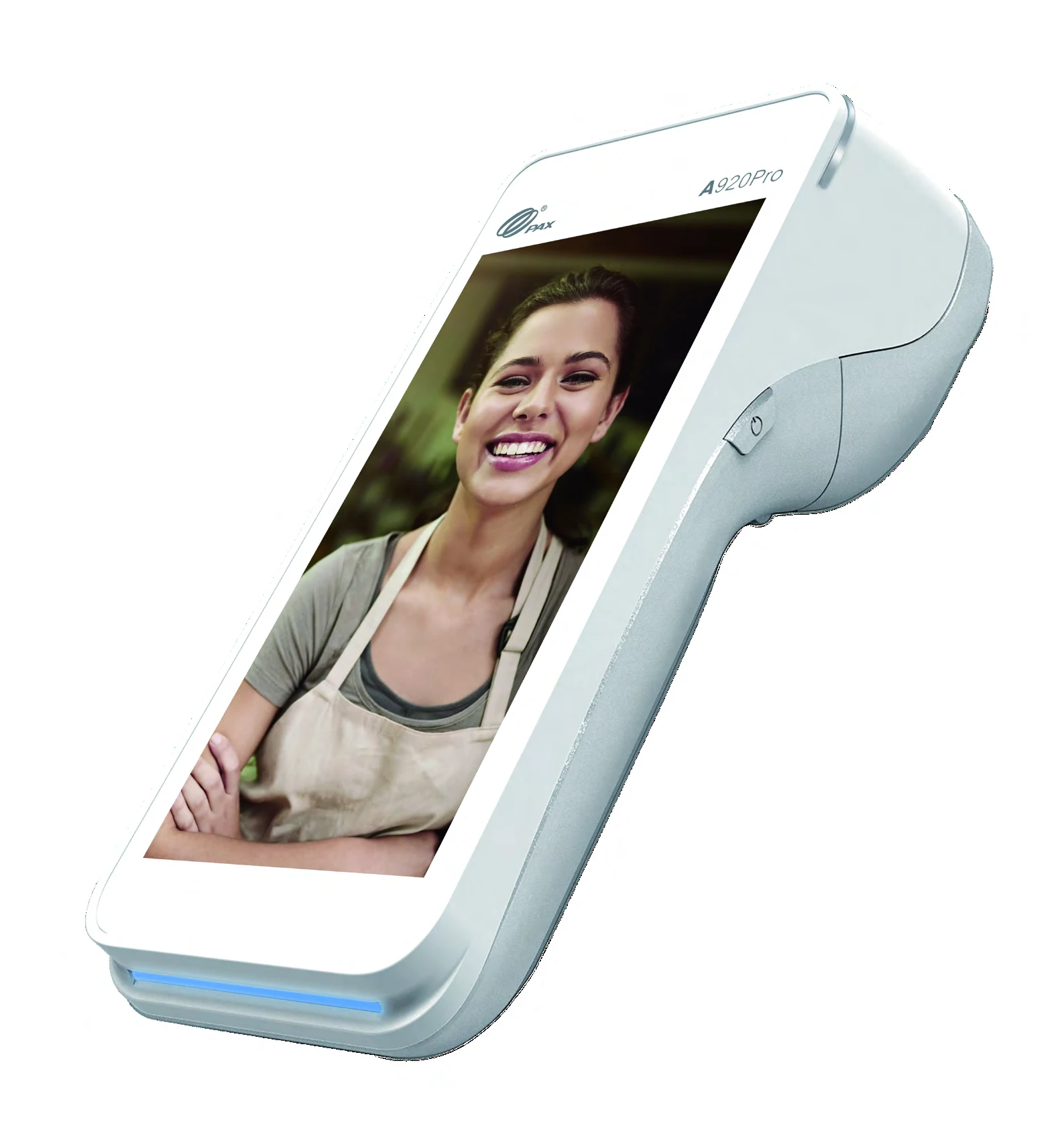

The A920Pro is a powerful all-in-one smart mobile payment terminal that puts a full SmartPOS in the palm of your hand. Powered by Android 8.1 with PCI 5 SRED security, a brilliant 5.5" HD display and advanced connectivity, it is built to keep your business moving wherever your customers are.
Built for every kind of business
- Food & Beverage
- Fashion & Retail
- Transportation
Powered by Android 8.1
A modern Android platform delivers the speed, apps and flexibility of a smartphone in a purpose-built payment terminal.
PCI 5 SRED Security
PCI 5 certification with SRED encryption protects every transaction and keeps cardholder data secure.
5.5" HD Display
A large, bright multi-point capacitive touch screen makes checkout fast and effortless for staff and customers alike.
Top-Side Scanner, 5MP Rear
A top-side barcode scanner and 5MP rear-facing camera let you scan products and capture information on the spot.
Advanced Connectivity
4G, Wi-Fi 5GHz and Bluetooth 5.0 keep you connected and taking payments virtually anywhere.
Specifications
| Operating System | PAXBiz® Powered by Android™ 8.1 |
|---|---|
| Processor | ARM Cortex A53 Quad-Core, 1.4GHz + Secure Processor |
| Memory | 8GB eMMC Flash + 1GB DDR RAM | Optional: 16GB eMMC Flash + 2GB DDR RAM* — Extended microSD Card Slot Up to 128GB |
| Card Readers | Chip & PIN | NFC Contactless | Magnetic Stripe |
| Cameras | 5MP Rear-Facing Camera + Top-Side Barcode Scanner — Optional: Higher Quality Barcode Scanner* |
| Displays | 5.5'' IPS WXGA 720 x 1440 Pixels — Multi-Point Capacitive HD Touch Screen |
| Comms Configurations | 4G + Wi-Fi® 5GHz + Bluetooth® 5.0 |
| Battery | 5150mAh | 3.7V |
| Printer | 40 lines/sec | Paper Roll Outer Diameter: 40mm |
| SIM / SAM | 1 Micro SIM + 2 SAM | 1 Micro SIM + 1 SIM + 1 SAM |
| Positioning | GPS | GLONASS | BEIDOU |
| Keys / Buttons | 4 Keys: Power ON/OFF | Volume+ | Volume- | Quick Scan Key |
| Audio | 1 Buzzer | 1 Speaker | 1 Microphone |
| Ports | 1 Type-C OTG | 6 PIN POGO PIN |
| Adapter | Input: 100-240V AC, 50Hz/60Hz | Output: 5.0V DC, 2.0A |
| Physical | 178.3 x 78 x 54.2mm, 390g (including battery) |
| Environmental | -10°C ~ 50°C (14°F ~ 122°F) Operating Temperature, Non-Charging — -20°C ~ 70°C (-4°F ~ 158°F) Storage Temperature — 5% ~ 95% Relative Humidity, Non-Condensing |
| Accessories | L920Pro-BC: Charging Base | 1 Power Port (Type-C) | 182.8 x 84.5 x 44.7mm — L920Pro-BE: Charging + Wireless | Wi-Fi® 5GHz + Bluetooth® 5.0 | 1 RS232 (RJ45) | 1 Ethernet(RJ45) | 1 Power Port (Type-C) | 1 Type-C (Device) | 1 USB(Host) | 182.8 x 84.5 x 44.7mm |
| Certifications | PCI PTS 5.x SRED | EMV L1 & L2 | EMV contactless L1 | Visa payWave | Mastercard contactless | UPI qUICS | American Expresspay | Discover D-PAS | JCB J/Speedy | Interac Flash | Mastercard TQM | Common.SECC UKCC | CE | RoHs | ATEX | FCC | IC | PTCRB | WPC | BIS | Anatel | ABECS |
* These optional features are bundled and cannot be ordered separately.
