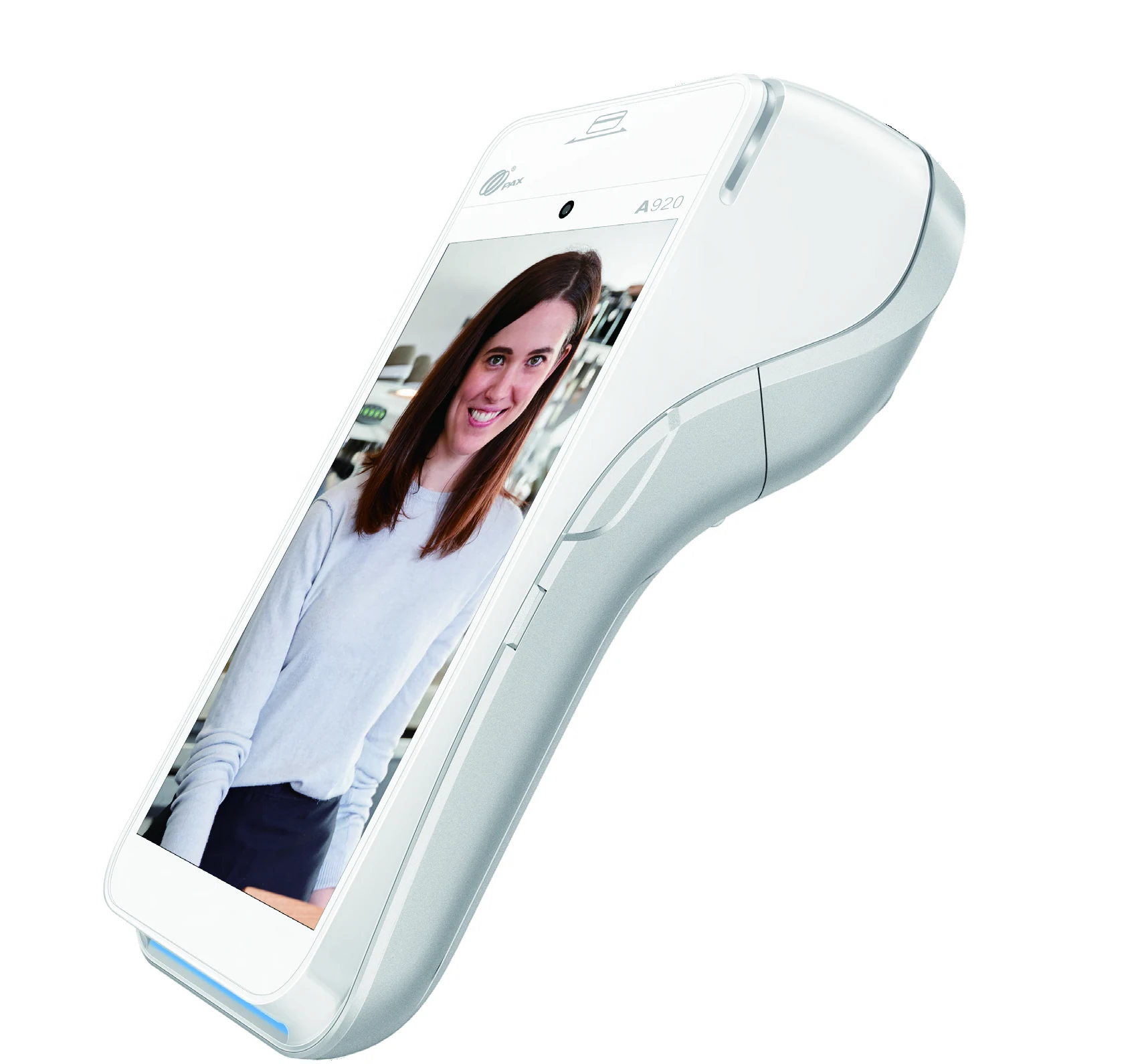

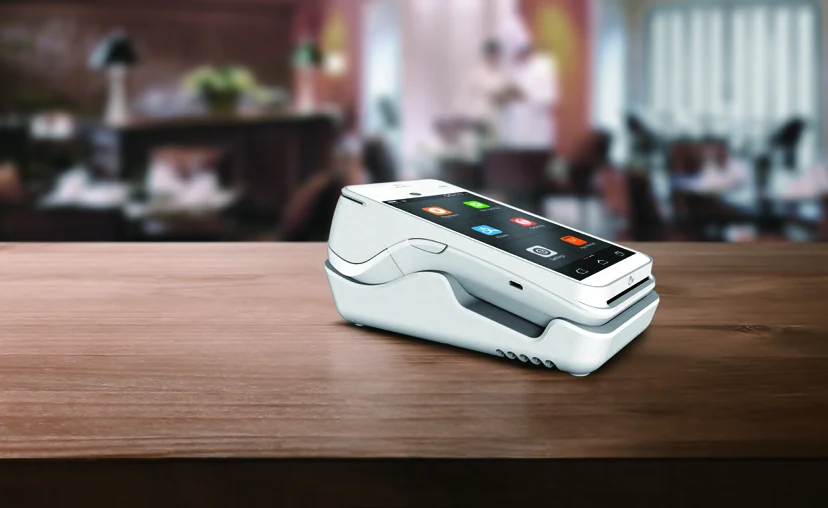

The PAX A920 is an elegant SmartPOS mobile terminal that combines sleek design with powerful performance. Powered by Android 7.1 and secured to PCI 5 SRED standards, it delivers fast, reliable payments wherever your business takes you.
Built for the way you do business
- Food & Beverage
- Fashion & Retail
- Transportation
Powered by Android 7.1
Runs on the Paydroid platform powered by Android 7.1 for a familiar, app-driven experience.
PCI 5 SRED
Certified to PCI PTS 5.x SRED, protecting every transaction with end-to-end security.
5" HD Display
A bright 5-inch multi-point capacitive HD touch screen for effortless everyday use.
5MP Rear / 0.3MP Scanner
A 5MP rear-facing camera plus a front-facing 0.3MP camera for scanning and capture.
Advanced Connectivity
Stay online with 4G, WiFi and Bluetooth so you can take payments virtually anywhere.
Specifications
| Operating System | Paydroid Powered by Android 7.1 |
|---|---|
| Processor | Cortex A7 + ARM |
| Memory | 8GB eMMC Flash + 1GB DDR RAM | Optional: 16GB eMMC Flash + 2GB DDR RAM. Extended Micro SD card slot up to 128GB (OS 7.1) or 32GB (OS 5.1) |
| Card Readers | Chip & PIN | NFC Contactless | Magnetic Stripe |
| Cameras | 5MP Rear-Facing + 0.3MP Front Facing |
| Displays | 5'' IPS WXGA 720 x 1280 Pixels. Multi-Point Capacitive HD Touch Screen |
| Comms Configurations | 4G + WiFi (2.4GHz, optional 5GHz) + Bluetooth 4.0 |
| Battery | 5250mAh | 3.7V |
| Printer | 40 lines/sec | Paper roll outer diameter: 40mm |
| SIM / SAM | 1 x SIM + 2 x SAM | Optional: 2 x SIM + 1 x SAM |
| Positioning | GPS |
| Keys / Buttons | 3 Keys: Power ON/OFF | Volume+ | Volume- |
| Audio | 1 Buzzer | 1 Speaker | 1 Microphone |
| Ports | 1 Micro USB OTG | 6 PIN POGO PIN |
| Adapter | Input: 100 - 240V AC, 50Hz / 60Hz | Output: 5.0V DC, 2.0A |
| Physical | 175.7 * 78 * 57 mm, 458g |
| Environmental | -10°C ~ 50°C (14°F ~ 122°F) Operating Temperature. -20°C ~ 70°C (-4°F ~ 158°F) Storage Temperature. 5% ~ 96% Relative Humidity, Non-Condensing |
| Accessories | PS200 Pole Stand | Silicon Protective Sleeve | Leather Case + Shoulder Strap. L920-BC: Charging Base | 1 Power Port (Micro USB) | 155.2 * 83 * 42.6 mm. L920-BM: Charging Base + LAN | 1 RS232 (RJ45) | 1 Ethernet (RJ45) | 1 Power port (Micro USB) | 2USB (Host) | 178 * 84.2 * 43.7 mm. L920-BF: Charging Base + QR Scanner | 1 RS232 (RJ45) | 1 Ethernet (RJ45) | 1 Power port (Micro USB) | 2 USB (Host) | 220.5 * 87 * 71.5 mm. L920-BE: Charging + Wireless | WiFi (2.4GHz) + Bluetooth 4.0 | 1 RS232 (RJ45) | 1 Ethernet (RJ45) | 1 Power port (Micro USB) | 1 Micro USB (Device) | 1 USB (Host) | 178 * 84.2 * 43.7 mm |
| Certifications | PCI PTS 5.x SRED | EMV L1 & L2 | EMV Contactless L1 | Visa payWave | MasterCard Contactless | UPI qUICS | Amex ExpressPay | Discover D-PAS | JCB J/Speedy | Interac Flash | MasterCard TQM | Common.SECC UKCC | CE | RoHs | ATEX |
